LED Lighting Solutions
✨ Bright & Energy Efficient

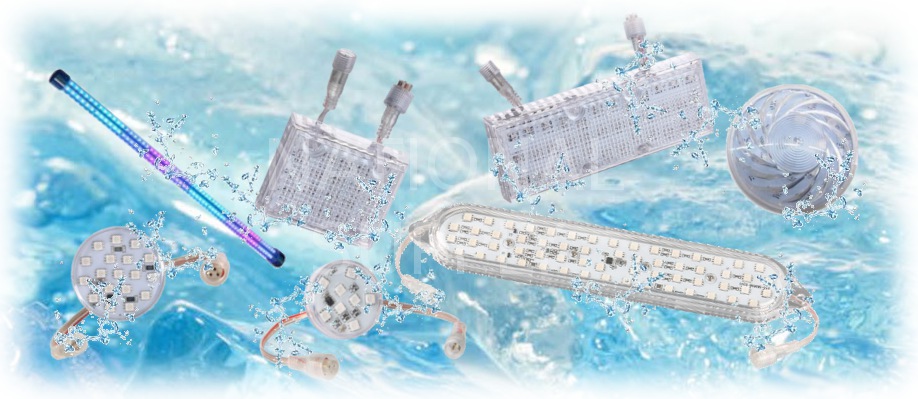

LED Amusement Lamps - Puck Lights
Premium LED Puck Lights for Carnival Rides • RGB • Preprogrammed • Programmable
Auto RGB Pre-Programmed Amusement Lights
*NEW 25 LED* 1-16 Puck Lights 1.75"
- Preprogrammed RGB Numbered 1-16
- Color Changing & Chasing Sequence
- 16 RGB + 9 White LED Chips - 25 Total
- No Controller Needed
$4.00
Each
100+ $3.50
Specifications:
- Hours: 50,000
- Color: RGB Multicolor LED
- Hole Size: 3/4"
- Waterproof: IP65
Electrical:
- Voltage: 24V AC 2.7w
- Working Temp: -20°C to 50°C
- Beam Angle: 240°
- Certification: CC, CE, EMC, RoHS
9 LED 1-16 Puck Lights 1.75"
- Preprogrammed RGB Numbered 1-16
- Color Changing & Chasing Sequence
- 9 5050 SMD LED Chips
- No Controller Needed
$3.00
Each
100+ $2.75
- Hours: 50,000
- Color: RGB Multicolor LED
- Hole Size: 3/4"
- Waterproof: IP65
- Voltage: 24V AC 1.5w
- Working Temp: -20°C to 50°C
- Beam Angle: 180°
- Certification: CC, CE, EMC, RoHS
9 LED 1-6 Puck Lights *110VAC*
- Preprogrammed Numbered 1-6
- *NOT* Color Changing
- 9 5050 SMD LED Chips
- *No* Transformer Needed
- *130VAC*
$3.25
Each
100+ $3.00
Colors: Clear, Red, Yellow, Blue, Pink, Green, Orange, Yellow/Green
See Our Selection of Chasing Light Controllers
Ferris Wheel light show videos
See Our Selection of Chasing Light Controllers
Ferris Wheel light show videos
21 LED Steady On Puck Lights 110VAC 1.75"
- 110V AC / 60V AC / 24V AC
- Steady On or Use With Chaser
- 21 3528 SMD LED Chips
$3.00
Each
100+ $2.75
Colors: Clear, Red, Yellow, Blue, Pink, Green, Orange, Yellow/Green
See Our Selection of Chasing Light Controllers
Ferris Wheel light show videos
See Our Selection of Chasing Light Controllers
Ferris Wheel light show videos
Programmable LED RGB Lighting
1.75" 10 LED DIY Programmable Pucks
- Custom DIY Programmable RGB
- Color Changing & Chasing Sequence
- 10 5050 SMD LED Chips
- RGB Controller Required
$4.00
Each
100+ $3.50
- Hours: 50,000
- Color: Custom RGB
- Waterproof: IP65
- Voltage: 24V DC
- Beam Angle: 240°
- Certification: CC, CE, EMC, RoHS

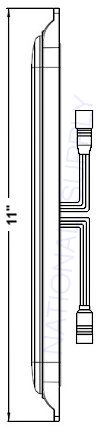

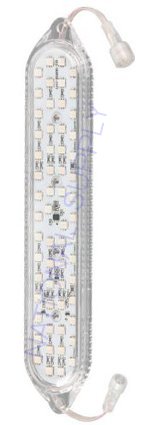

11" 60 LED Programmable Wheel Pucks
- Custom Programmable RGB
- Color Changing & Chasing Sequence
- 60 5050 SMD LED Chips
- Controller Required
$22.00
Each
100+ $21.00
Preprogrammed RGB Bumper Car Tube Lights
- 24v DC 72w
- Preprogrammed No Controller Required
- 360 5050 SMD LED Chips
P.O.R.
Each
10+ P.O.R.
- Hours: 50,000
- Hole Size: 3/4"
- Waterproof: IP65
- Length: 39.5"
- Voltage: 110v 60v 24v DC 1.5w
- Working Temp: -20°C to 50°C
- Beam Angle: 180°
- Certification: CC, CE, EMC, RoHS
3 Shaft Sizes: Inside Diameter 1.25" 1.34" 1.5"
24V DC LED Power Supplies
| Product Description | Watt | Each | 2+ |
|---|---|---|---|
| IP22 360W- Power Supply | 360w | $28.00 | $25.00 |
| IP44 400W- Power Supply | 400w | $45.00 | $40.00 |
LED Light Controllers
T1000S & T8000S LED Controller For Programmable Lamps
| Product Description | Runs | Voltage | Each |
|---|---|---|---|
| T1000S LED Controller | 2048 Lights | 24vDC | $70.00 |
| T8000S LED Controller | 8000 Lights | 24vDC | $185.00 |
- Frame rate: 512 pixels the frame rate will slow down automatically
- T-1000S & T8000S Controllers must use LedEdit software
- Number of programs: 16 MAX Per SD Card
- Multiple controllers can be synchronous together
- Memory type: SD card (suggest using high-speed SD card) Capacity: 128MB—2GB
- Working voltage: DC5V / DC7.5-24V
- Waterproof Degree: Protect from elements
Jefferson Electric Buck Boost Transformers
Jefferson and Acme Buck Boost Transformers have an input voltage of either 110V AC or 220V AC. Output voltage can be wired for 12V AC or 24V AC. See wiring diagram below.
| KVA (Voltage) | Model # | Height | Width | Depth | Each |
|---|---|---|---|---|---|
| .15 KVA (150v) | 416-1111-000 | 8.03" | 3.31" | 3.08" | P.O.R. |
| .25 KVA (250v) | 416-1121-000 | 8.03" | 3.31" | 3.08" | P.O.R. |
| .5 KVA (500v) | 416-1131-000 | 8.03" | 3.31" | 3.08" | P.O.R. |
| .75 KVA (750v) | 416-1141-000 | 10.19" | 5.06" | 4.56" | P.O.R. |
| 1.0 KVA (1000v) | 416-1151-000 | 10.19" | 5.06" | 4.56" | P.O.R. |
| 1.5 KVA (1500v) | 416-1161-000 | 12.50" | 6.69" | 5.34" | P.O.R. |
| 2.0 KVA (2000v) | 416-1171-000 | 12.50" | 6.69" | 5.34" | P.O.R. |
Acme Electric Buck Boost Transformers
| KVA (Voltage) | Model # | Height | Width | Depth | Each |
|---|---|---|---|---|---|
| .25 KVA (250v) | T181050 | 10" | 4.75" | 4.0" | $195.00 |
| .5 KVA (500v) | T181051 | 10" | 4.75" | 4.0" | $245.00 |
| .75 KVA (750v) | T181052 | 10" | 4.75" | 4.0" | $290.00 |
| 1.0 KVA (1000v) | T111683 | 13" | 6.75" | 6.5" | $330.00 |
| 1.5 KVA (1500v) | T111684 | 13" | 6.7" | 6.5" | $395.00 |
| 2.0 KVA (2000v) | T111685 | - | - | - | P.O.R. |

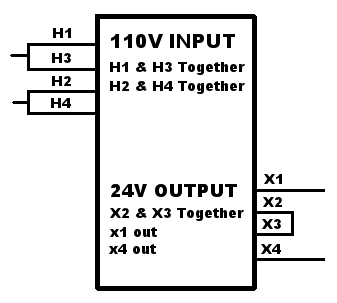

Buck Boost Step Down Transformer Wiring Diagram
110V Wiring In: Connect H1 & H3 together, Connect H2 & H4 together
24V Wiring Out: Connect X2 & X3 together, Output X1 & X4
Important: Always check output voltage before connecting lights.
24V Wiring Out: Connect X2 & X3 together, Output X1 & X4
Important: Always check output voltage before connecting lights.
About National Supply
National Supply is a nationwide leader in the distribution of specialty lighting and electrical products for the carnival and amusement park industry. Service is our number one priority.
Supplying the Amusement Industry Since 1984
Premium LED Lighting for Carnival Rides
Custom Programming Available
